AST 350+150

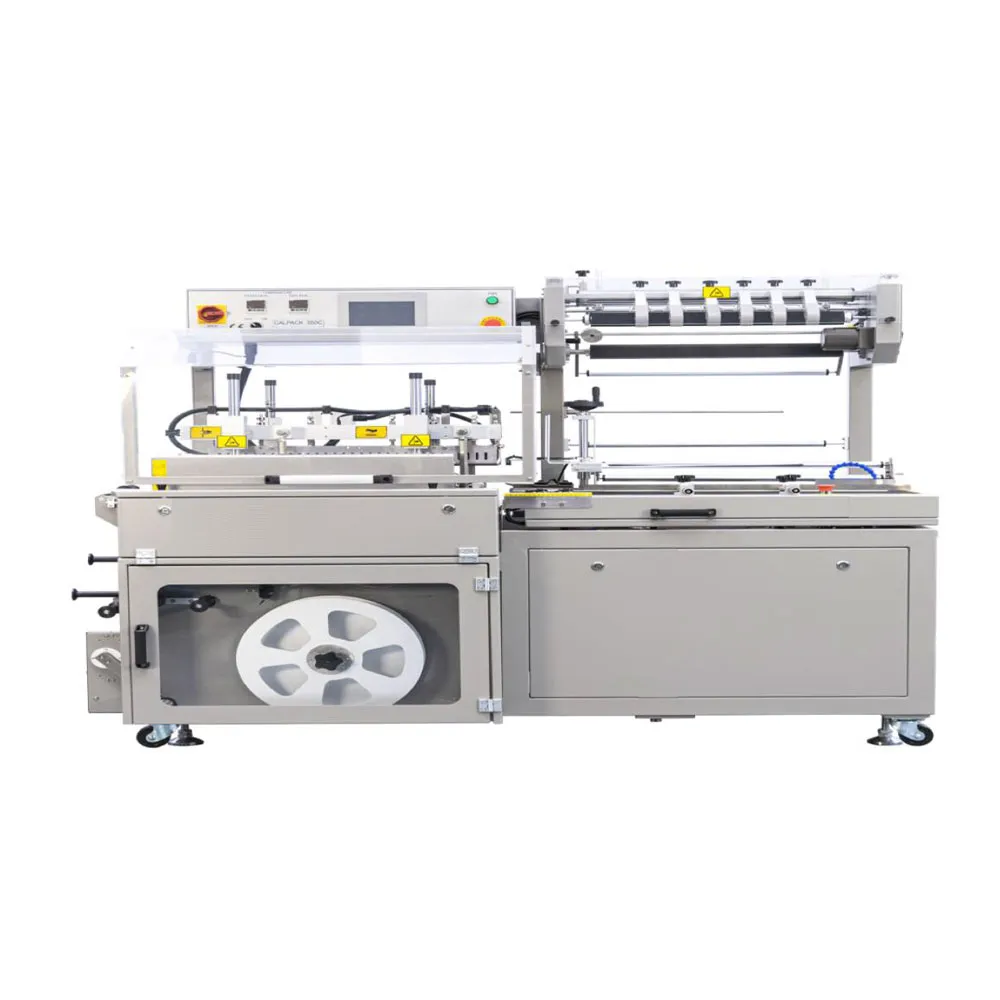

Vertical Seal Type Automatic Sealer Machine:AST 350
► PLC controller, photo sensor detection system, safety protection device for sealing knife
► Using the integral steel knife, out of shape not easily, making the seal is fastness
► The machine adopts simple adjustable punching pin wheel, easy adjustable.
► Vertical sealing design, good stability for sealing, high durability, the sealing line is strong and beautiful
► The machine adopts touch screen with color operation interface, easy to operate
► Performance stability, easy to operate, lower failure rate, high production efficiency
► With good electrical configuration, the failure rate of the machine is very low. After the machine is adjusted, there is no need to take care of it, which greatly improves the production efficiency.
Shrink Tunnel:AST150
► The downwind air is circulating fan design, open the window design
► The wind and heat are circulating in the furnace, which greatly saves heat energy, and heats fast
► Power and direction of wind, and speed of delivery can be adjusted, the shrink effect is more perfect
► Easy to operate, the temperature is controlled automatically.
► Downwind circulation fan system design, side air outlet direction can be adjusted, side and bottom wind can be adjusted
► High velocity high temperature resistant blower motors
► Using high-quality thermal insulation cotton, double-layer thermal insulation, to minimize energy consumption
► Equipped with an automatic cooling function, which can better protect the equipment and increase the service life of the equipment.
► Designed with movable casters for easy placement
Product Info
Overview
TECHNICAL DATA
► TYPE:AST 350 (Standard)
► Max.Speed: 40-60 PPM (Depends on product size and shrink film material)
► Packaging dimensions length 100-550 mm,width 60 to 400 mm, height 20 to 180 mm
Standard type(AST 350):length 100-550 mm;
Kissing belt (AST 350C):length 50-550 mm; (As the height increases, the length of the package decreases)
► Sealing bar size: 630 X 450 mm (L*W)
► Working height 850 mm +/- 50 mm
► Power:220 V / 1 phase / 3 Kw
► Air Pressure:8 kg
► Machine Dim:1910 x 1100 x 1680 mm (L x W x H)
► TYPE : AST150
► Shrink area size:1500 × 500 × 300 mm (L*W*H)
► Packing product range:400 × 250 mm (W*H)
► Conveyor belt speed is 0-30 M/min
► Power supply: 3P 380V 15KW
► Working height: table height 850 mm
► Machine Dim:1800 x 1020 x 1250 mm (L x W x H)
