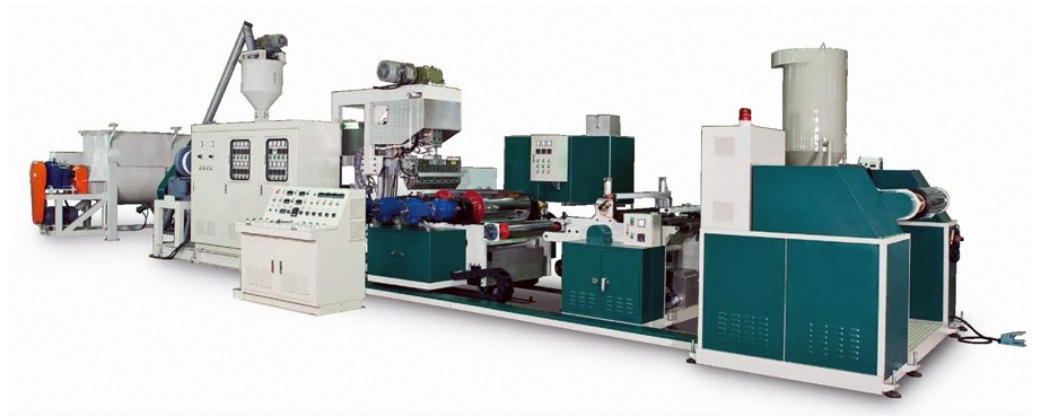

PET Sheet Extrusion Machine
PET Sheet Extru
Hotline: +603 - 6274 0288
product CATEGORIES
Contact Us:
+ 603 - 6274 0288
+ 6016 - 333 0347
+ 6019 - 338 0347
+ 603 - 6274 0288
+ 6016 - 333 0347
+ 6019 - 338 0347
Features
- High Efficiency & High Throughput
- Applicable for 100% crushed PET chip materials
- Maximum production rate = 400 kg per hour
- Extra Low Power Consumption
- Less than 15 kW per hour, during normal operation, for the entire production line
- Unique Design
- Our machine integrates Extra High Performance
– Allows system free from heavy duty dehumidifier
– Allows system free from high deploys special designed screw & barrel
– With super precision cooling molding system
– With stable winding unit
- High production efficiency & low operation cost
Specifications
|
Model |
ASB- E Series |
ASB- S Series |
|
Material |
PET |
|
|
Sheet size (W x T) |
1,050 x 0.10~0.60 mm |
750 x 0.30~1.60 mm |
|
Capacity |
200~400 kg/hr |
300~400 kg/hr |
|
Line speed |
10~40 m/min |
2~20 m/min |
|
Screw diameter |
Ø100 mm (L/D = 34:1) |
|
|
Driving motor |
AC 150 HP |
|
