PRODUCT > MULTIPLE PACKAGING MACHINE FAC 207

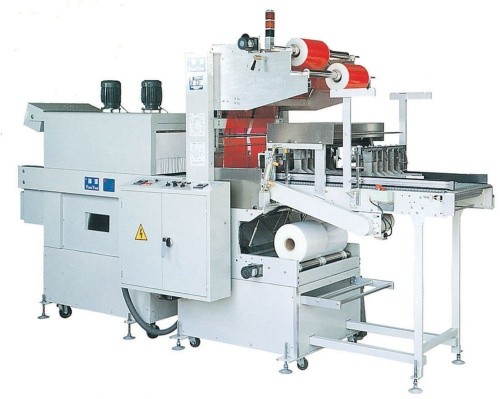

Multiple packaging machine FAC-207
FAC-207
Multiple packaging machine FAC-207

APPLICATIONS  ⇒

♦  Cans, glass or plastic bottles.

FAC-207 / FAC-209  ⇒

Specification FAC-207      FAC-207T FAC-209      FAC-209T
Packing capacity 2 x 2,  2 x 3 2 x 2,  2 x 3
Effective packing size (L x W x H) 210 x 160 x 180 mm 300 x 200 x 320 mm
Film applied Printed        Unprinted                 film ->          film-> Printed        Unprinted                 film ->          film->
Packing speed 25~30        25~35             packs/min    packs/min 20~25        20~28             packs/min    packs/min
Air pressure 5~6 kgf/cm2 5~6 kgf/cm2
Machine dimension (L x W x H) 2,400 x 1,150 x 1,990                     mm 2,400 x 1,150 x 1,990                     mm
Machine weight 600 kgs 750 kgs



FM-6030L / FM-7530L  ⇒

Specification FM-6030L FM-7530L
Effective packing size (L x W) 500 x 280 mm 650 x 280 mm
Packing ability 1~10 m/min 1~10 m/min
Power Voltages upon request Voltages upon request
Electric heating 15kW 18kW
Machine dimension (L x W x H) 2,025 x 800 x 1,610                     mm 2,025 x 950 x 1,610 mm
Machine weight 400 kgs 500 kgs



FAC-207 / FAC-209 MERITS  ⇒
♦  The shrinkable film is considerably cheater than carton.
    There are no problems in applying bar code on the film.
    Stable packs and good stacking qualities.
♦  Good protection for bottles and cans against contamination-clean,
        sanitary and good moisture resistance.
    Protection for bottled products against the effects of UV radiation.
♦  The film can be printed for specific promotional advertising effects,
        & inserted coupons for sales promotion.
    Encourages the sale of multipacks instead of single products.
    Products are easily distinguished & managed. PE film can be recycled.
♦  It's very easy to do arrangement on production line.
    Simple & clean appearance is the best equipment for GMP factory.
♦  It's equipped with safety alarm devices including the sealing safety sensor,
        non-film sensor, upside-down cans sensor & film breakage sensor.
    There are photo eyes following up the register printed film.
♦  Body is made by painted steel or stainless steel & aluminum alloy material.
♦  It's easy & fast to adjust different packing structures.
♦  Controlled by PLC program, so the actions are smooth.
     It's simple to operate the control panel.

FAC-207 / FAC-209 FEATURES  ⇒
♦  Register printed or unprinted shrinkable film can choose.
♦  Most suitable for PE printed material to make the great value of products.
♦  Various pack formations can meet the trend of wholesale.
♦  Fast packing speed can match the production line prosperously.
♦  To assure the quality without being damaged, to save electricity & to increase profits.
♦  Heat oven for contracting will send out even heat radiation.
    Delivery is done by rollers with durability.
♦  Special air flow directional construction for color/non-color film,
        can shrink products bautifully & smoothly.
♦  Variable speed tunnel conveyor, automatic thermostat controls, simple operation.
♦  Silicone rubber coated conveyor belt rods.

FAC-207 / FAC-209 SPECIAL EXPLANATIONS  ⇒
♦  The stanard working height is 900 +/- 50mm.
    Special working height can be made as per customer' requirement.
♦  The infeed conveyor (as shown A figure) can connect with the production line.
♦  The position of the control cabinet is optional.
♦  If the pack formation is 1x2, 1x3, 3x4, 2x4, 2x5 or PET bottles,
        the machine can be additionally designed.
♦  The infeed conveyor can be additionally equipped with the dispersing mechanism.
♦  The upper film is surface printed film, the lower one in transparent film.
