APPLICATION ⇒
♦ Chocolate bar, biscuits, bread;
♦ Frozen food, instant noodle;
♦ Machine parts, tools, phone cards & etc.
Model No. | JE-547-EA | JE-561-EA | |
Capacity (PPM) | 20~180 | 20~140 | |
Bag Length (mm) | 60~350 | 100~450 | |
Max. Film Width | 470 mm | 610 mm | |
Max. product Dimension | W | 190 mm | 270 mm |
H | 60 mm | 60 mm | |
Electricity | AC220V-1 phase |
DESCRIPTION ⇒

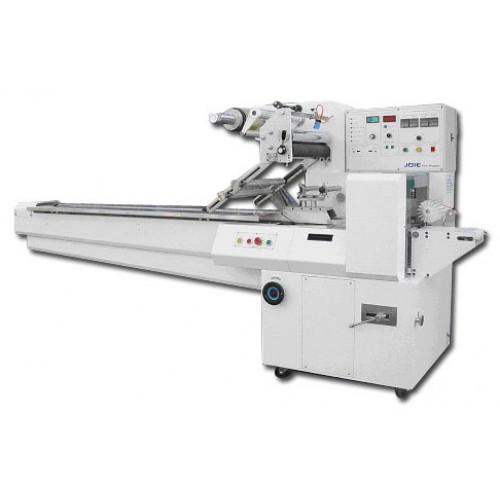

Basic Asian mechanical Wrapper (31 years professional & sales over 30 countries)
♦ 4 sets of temperature controller
♦ Electric bag length adjustment
♦ Print mark registration
♦ Fixed bag former
FEATURES ⇒
♦ PID temperature controller
♦ Germany “sick” mark sensor
♦ PLC progam control
♦ Powder coation machine frame
♦ Mark Auto reset button for film replacement
♦ Timing belt transmmision
OPTIONAL ACCESSORY ⇒
♦ Date coder
♦ End seal gusset
♦ In-feed carrier block
♦ Additional reel holder
♦ Transfer belt between center sealer & end sealer
♦ Transfer chain conveyor on the end sealing station
♦ Gas flushing device
♦ Cards auto feeder
♦ Auto feeding system
