PRODUCT > HORIZONTAL CONTINUOUS SEALING MACHINE

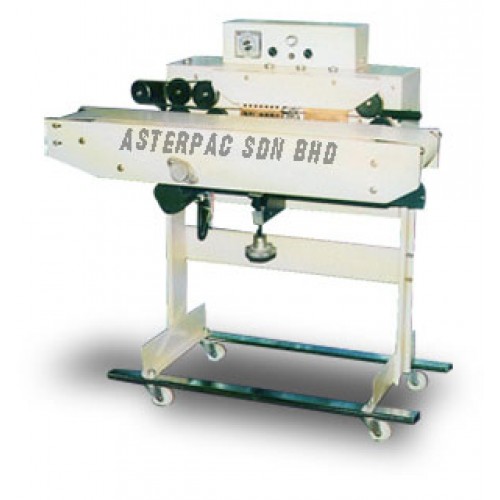

Continuous Sealing Machine - Horizontal Type
SH-8N
Continuous Sealing Machine - Horizontal Type

sealer machine | sealer machine malaysia | sealing machine malaysia | continuous sealing machine malaysia | band sealer malaysia | band sealer machine malaysia | continuous band sealer malaysia | band sealing machine malaysia


FEATURES  ⇒

♦  Sealing method for standard machine.
♦  Operated from right to left.
♦  Good performance, easy to handle, low maintenance cost,
    simple design parts supplied in standard specification.
♦  Machine fitted with castor or easy relocations.
♦  Machine's height & conveyor are fully adjustable.
♦  Adjustment control for bags of various thickness.
♦  2-ply PVC converyor belt ensure durability.
♦  Cooling device ensure sealed area from opening up before embossing.
♦  Fully adjustable teperature controller ensure good strong seal.
♦  Due to indirect heat, almost all types of heat sealable materials can be used.
♦  All bolts & nuts and shaft are of stainless steel materials.



SPECIFICATION  ⇒

Model SH-8N
Voltage 240V,  single phase,  50 Hz
Maximum power consumption 750 W
Temperature setting 0~400 ºC
Sealing belt width 10 mm
Conveyor speed 8 meter per minute
Conveyor belt 145 mm
Main motor 220~240V,  40 W
Fan capacity Volume 1,000 litre per minute
Floor area (L x W) 1,010  x  480 mm
Machine net weight 90 kg
