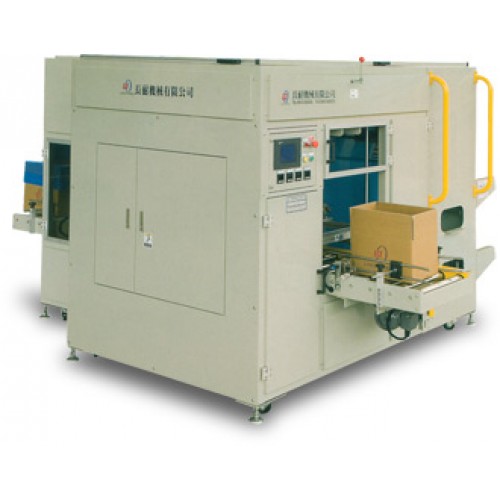

Carton inserting machine (direct insert) LE-886A
LE-886A
Hotline: +603 - 6274 0288
product CATEGORIES
Contact Us:
+ 603 - 6274 0288
+ 6016 - 333 0347
+ 6019 - 338 0347
+ 603 - 6274 0288
+ 6016 - 333 0347
+ 6019 - 338 0347
APPLICATIONS ⇒
For carton bag stress hygiene such as frozen food,
processed food products, agricultural products, edible oils & etc.
| Specification | LE-886A |
| Carton feed speed | 8~10 cartons/min |
| Complete carton (L x W x H) | 200~400 x 200~300 x 150~250 mm |
| Film size | 460~840 mm |
| Film length equation | Carton: L+W+140mm = width of film roll |
| Power source | 220V, single phase |
| Air pressure | 5 kg/cm2 |
| Machine dimension (L x W x H) | 3,170 x 2,240 x 2,300 mm |
LE-886A FEATURES ⇒
♦ It can make bags with multiple lengths from a roll of flat or gushed film;
places the bag into a carton & fold the top flaps of it over the edges.
♦ Different kinds of carton erectors can be linked.
♦ Adds a film-press device to make the observe bag
which is especially suitable for food packaging.
♦ Gusset folding film is suitable and gusset corner is able to seal.
♦ For oil industries.
