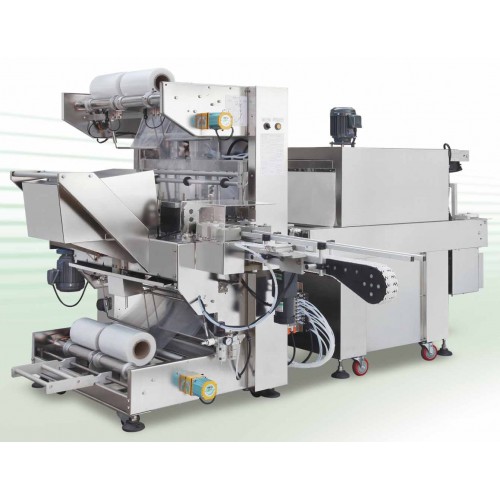

Automatic multiple packaging machine FALC-9020-2A
Automatic multi
Hotline: +603 - 6274 0288
product CATEGORIES
Contact Us:
+ 603 - 6274 0288
+ 6016 - 333 0347
+ 6019 - 338 0347
+ 603 - 6274 0288
+ 6016 - 333 0347
+ 6019 - 338 0347
APPLICATIONS ⇒
♦ Tetra pack, P.K.L., S.I.G., paper cartons & etc.
FALC-9020-2A ⇒
| Specification | FALC-9020-2A |
| Packing size | 250~400 g |
| Film applied | PVC, POF, OPP |
| Packing capacity | 80~120 times/min |
| Power | 220/380V, 3 phase, 0.8kW |
| Air pressure | 5 kgf/cm2 |
| Machine dimension (L x W x H) | 2,910 x 1,600 x 1,870 mm |
| Machine weight | 400 kgs |
FALC-9020-2A WRAPPER ⇒
| Specification | FALC-9020-2A |
| Packing capacity | 25~35 packs/min |
| ------------------------- | ------------------------------------- |
FALC-9020-2A FEATURES ⇒
♦ Whole body is made by stainless steel & aluminum alloy materials.
♦ Different sizes, mechanism high-speed & easy adjustment.
♦ Suitable for 1x3 packing or 2x3 packing to meet the fashion of chain stores.
♦ Suitable for the linking production line in foods factory, to meet GMP requirement.
♦ It has deviced with sealing safety detector, non-film detector, infeed clamping
detector, product reverse packing detector, electric heating break detector,
film breaking or poor sealing detector, alarm system & etc.
FM-7530 ⇒
| Specification | FM-6030L |
| Packing size | 700 x 280 mm |
| Packing ability | 1~10 m/min |
| Power | 220/380V, 3 phase, 60 Hz |
| Electric heating | 14kW |
| Machine dimension (L x W x H) | 1,600 x 950 x 1,575 mm |
| Machine weight | 250 kgs |
FM-7535 FEATURES ⇒
♦ It is handy, space-saving, convenient for use.
♦ Never quality damage, power saving, profit increased.
♦ Even heat & radiation, conveying is driven
by stainless steel net converyor for durable application.
♦ Integrated structure of stainless steel.
