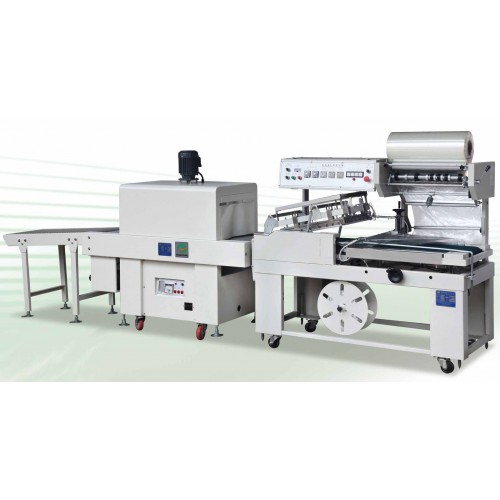

Automatic L-type packaging machine F-510
F-510
Hotline: +603 - 6274 0288
product CATEGORIES
Contact Us:
+ 603 - 6274 0288
+ 6016 - 333 0347
+ 6019 - 338 0347
+ 603 - 6274 0288
+ 6016 - 333 0347
+ 6019 - 338 0347
APPLICATIONS ⇒
Food, gifts, fruits, stationery, books,
electric appliances, hardwares, handtools, toys,
wooden wares, daily necessities, clothings, printing paper & etc.
F-510 ⇒
| Specification | F-510 |
| Packing capacity | 5~20 packs/min |
| Effective packing size (L x W x H) | 480 x 430 x 15~100 mm |
| Power | 220V, single phase, 50/60 Hz |
| Electric heating | 1.5 kW |
| Air pressure | 5 kgf/cm2 |
| Convey motor | 20W x 1; 60W x1 |
F-510 FEATURES ⇒
♦ Most suitable for packing add goods and boxed goods.
♦ Smokeless heat sealing.
♦ Extremely simple packing processes.
♦ Small mensurements for suving space.
♦ Easy movement.
♦ Sealing cutter has equipped with safety device.
FPSB-M4525 ⇒
| Specification | FPSB-M3020 | FPSB-M4525 | FPSB-M6030 |
| Packing size | 250 x 180 mm | 400 x 230 mm | 550 x 280 mm |
| Packing ability | 1~10 m/min | 1~10 m/min | 1~10 m/min |
| Power | 220/380V | 220/380V | 220/380V |
| Electric heating | 4kW | 6kW | 8.5kW |
| Machine dimension (L x W x H) | 1,500 x 500 x 1,400 mm | 1,500 x 650 x 1,400 mm | 1,500 x 800 x 1,500 mm |
FPSB-M4525 PVC, POF FEATURES ⇒
♦ Special hot blast circulation in shrinkage stove to coordinate
with electric tube and intra-red tube will lower the power consumption &
make the commodities packed beautifully without damage under low temperature.
♦ Delivery speed can be easily adjusted.
