PRODUCT > AUTOMATIC INTELLIGENT HIGH SPEED DOUBLE FACED STICKER LABELING MACHINE

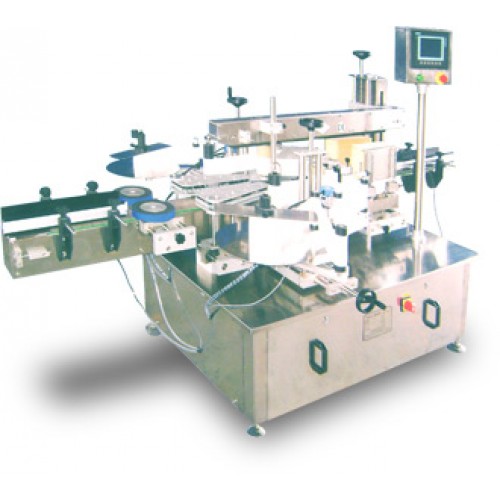

Automatic intelligent high-speed double-faced sticker labeling machine
J1100A
Automatic intelligent high-speed double-faced sticker labeling machine

LABEL FORM  ⇒



FEATURES  ⇒

♦  Adopted stand-up label method, installed the special orientation
        & pressing equipments to make the bottles steady.
♦  The head can be adjusted up & down, front & back and slantways.
♦  Special suitable for labeling the parts of symmetry & non-symmetry containers
        & label double-faced stickers on different shapes of containers.
♦  Installed special pressing stickers equipment to make the labels unknitly.
♦  It can save 8 kinds of labeling information, it doesn't need to debug & move the
    magic eye again when u change the labeling containers.
♦  The touching display, simulant capacity adjustment & it has easy mechanical
    adjustment, need not the professional technical worker to operate.


SPECIFICATION  ⇒

Model J1100A
Object to apply Flat, square, oval, columniform, coniform                  & other anomalistic containers
Container range (W x H) 30~300 x 20~120 mm
Label range (L x H) 15~300 x 15~170 mm
Label speed 0-300 pcs/min
Label precision ±1 mm
Power 0.5kW,  220V,  50/60HZ
Machine dimension (L x W x H) 2,440 x 1,200 x 1,600 mm
Machine net weight 480 kgs

**** We can customize your order if you have special demands. ****
