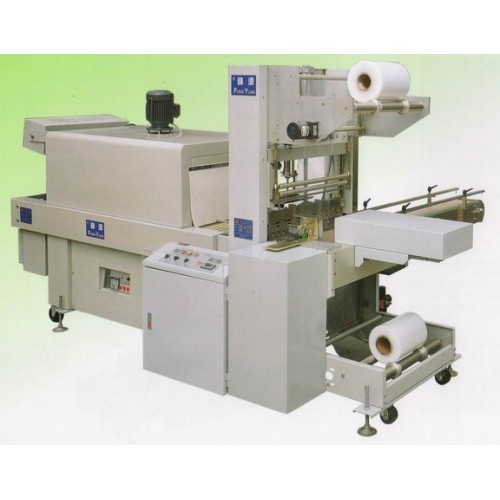

Automatic 2-sides seal & shrink packaging machine FAL-6020-2
FAL-6020-2
Hotline: +603 - 6274 0288
product CATEGORIES
Contact Us:
+ 603 - 6274 0288
+ 6016 - 333 0347
+ 6019 - 338 0347
+ 603 - 6274 0288
+ 6016 - 333 0347
+ 6019 - 338 0347
APPLICATIONS ⇒
Gift boxes, food cans, special products, medicines,
printing articles, books, daily necessities, electric appliances,
toys, metallic tools, sporting goods, wooden wares, tiles & etc.
Product → Delivered by the conveyor → Counting accumulated
→ Pusher → Sealing part → Finished goods.
FAL-6020-2 ⇒
| Specification | FAL-6020-2 | FAL-9040-2 |
| Packing capacity | 5~15 times/min | 5~15 times/min |
| Packing size (L x W x H) | 200~500 x 60~350 x 50~280 mm | 200~700 x 60~550 x 50~380 mm |
| Packing material | PE, PVC, OPP | |
| Power | 220/380V, 0.6kW | 220/380V, 0.8kW |
| Air pressure | 5 kgf/cm2 | 5 kgf/cm2 |
| Machine dimension (L x W x H) | 1,450 x 1,880 x 1,615 mm | 1,740 x 2,180 x 1,825 mm |
| Machine weight | 300 kgs | 400 kgs |
FM-6030L PE ⇒
| Specification | FM-6030L | FM-7530L | FM-9040L |
| Packing size | 550 x 280 mm | 700 x 280 mm | 850 x 380 mm |
| Packing ability | 1~15 m/min | 1~15 m/min | 1~15 m/min |
| Power | 220/380V | 220/380V | 220/380V |
| Electric heating | 9kW | 10kW | 11kW |
| Machine dimension (L x W x H) | 1,800 x 800 x 1,470 mm | 1,800 x 950 x 1,470 mm | 1,800 x 1100 x 1,570 mm |
FM-6030 FEATURES ⇒
♦ To assure the quality without being damaged, to save electricity & to increase profits.
♦ Heat oven for contracting will send out even heat radiation.
Delivery is done by rooler with durability,
& the speed is controlled and driven by DC motor.
